產品介紹

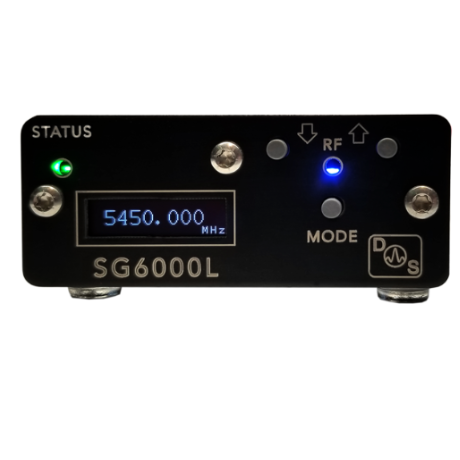

onedriver

• Frequency Range: 24-6000 MHz
• Calibrated power output range: -22 to +15dBm
• Typical uncalibrated range: -30 to +17dBm
• Typical harmonic levels (0.3-6GHz): -35dBc
• Phase Noise at 6GHz: -72dBc @ 10KHz offset
• Internal Attenuator (digital): 32dB (64x 0.5dB Steps)
• Internal Attenuator (variable): ~20dB (10 bit DAC)
• Dimensions: 2.75″ x 1.25″ x 2.15″
• Input Voltage: 5V Standard USB Type C
• Typical current requirement: 0.50A
• Output Impedance: 50 Ohm
• RF Connector: Premium gold microwave SMA
• 10MHz reference input port: MCX connector

相關產品 :

MCX to SMA Cable 1M    C0841 EC-RG316-100-0121

測試軟體 :

ETSW-583-U2041XA-SG6000L

ETSW-575-SG6000L   SG Control 軟體

搭配 SPA 使用 :

D0662 USB-SA124B Spectrum Analyzers

BB60C Real-Time Spec Analyzer

BB60D

K0139 SP145 Spectrum Analyzer
