ETF-2338-E5063A GPS 1 Port 2 Band 倍增 8 工位
VNA E5063A 2 port 3 GHz

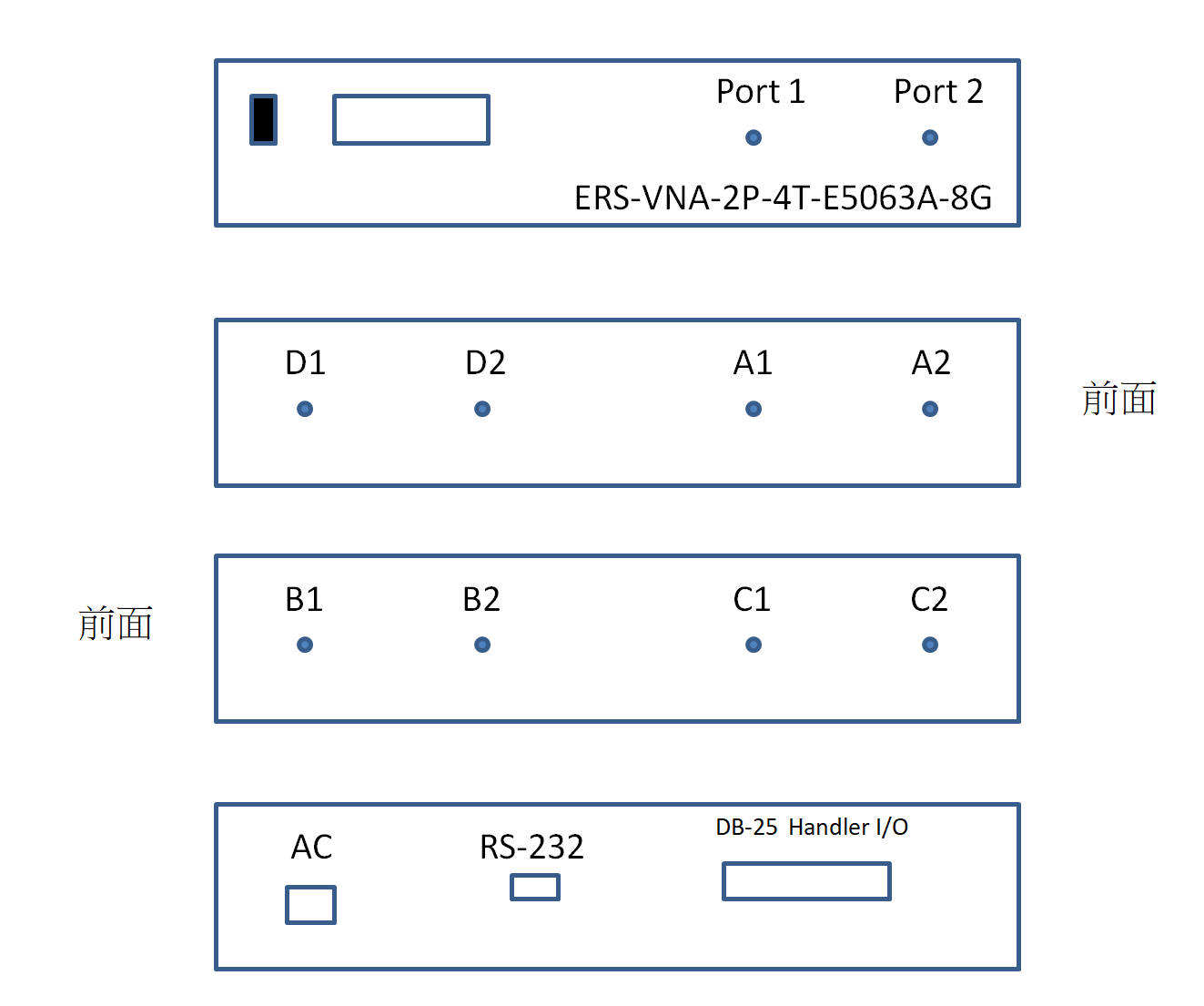

RF Sw 2P x 4 T ( W432 x H88 x D350 )
User 1 VNA CH1 S11 A1
VNA CH2 S11 A1
ESC-182 對應 CH1 S11 A1
Mul-182 VNA CH1 & CH2
*****************************************************
User 2 VNA CH3 S22 A2
VNA CH4 S22 A2
ESC-182 對應 CH3 S22 A2
Mul-182 VNA CH3 & CH4
*****************************************************
User 3 VNA CH5 S11 B1
VNA CH6 S11 B1
ESC-182 VNA CH5 S11 B1
Mul-182 VNA CH5 & CH6
*****************************************************
User 4 VNA CH7 S22 B2
VNA CH8 S22 B2
ESC-182 VNA CH7 S22 B2
Mul-182 VNA CH7 & CH8
*****************************************************
User 5 VNA CH9 S11 C1
VNA CH10 S11 C1
ESC-182 VNA CH9 S11 C1
Mul-182 VNA CH9 & CH10
*****************************************************
User 6 VNA CH11 S22 C2
VNA CH12 S22 C2
ESC-182 VNA CH11 S22 C2
Mul-182 VNA CH11 & CH12
*****************************************************
User 7 VNA CH13 S11 D1
VNA CH14 S11 D1
ESC-182 VNA CH13 S11 D1
Mul-182 VNA CH13 & CH14
*****************************************************
User 8 VNA CH15 S22 D2
VNA CH16 S22 D2
ESC-182 VNA CH15 S22 D2
Mul-182 VNA CH16 & CH14
